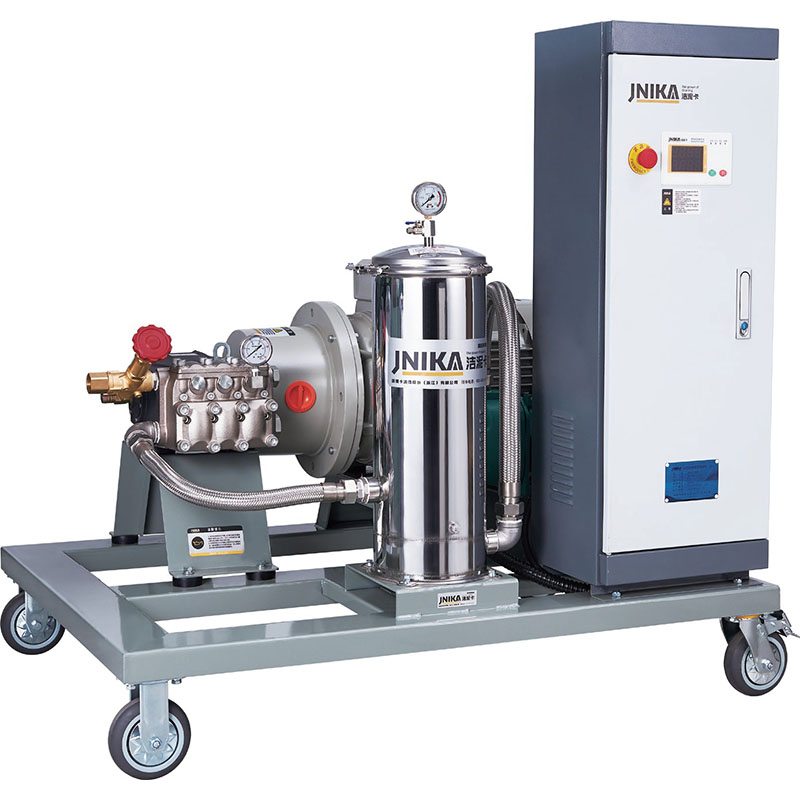

The JZ series intelligent high-pressure unit. The machine operates with high precision filter element 7 pcs , which could better filter impurities and bacteria in the air. All components are designed for continuous use. The intuitive operation, compact dimensions and guarantee comfortable handling. This fog making system is also impressive in terms of efficiency: moveable tires ensure the mobility of the fog-making position. The machine can realize high-pressure multi-point and multi-time mist generation and cleaning operations.
Technical data
Model |
JNK-JZ-3010TP |
JNK-JZ-3012TP |
JNK-JZ-3016TP |
Motor Voltage(KW) |
30 |
||
Voltage(V) |
380 |
||
Frequency(HZ) |
50 |
||
Rotary Speed(rpm) |
1450 |
||
Rated Pressure(bar/PSI) |
100/1450 |
120/1740 |
160/2320 |
Max Pressure(bar/PSI) |
110/1595 |
130/1885 |
170/2465 |
Flow Volume(L/min /GPM) |
145/38.25 |
115/30.35 |
95/25.06 |
Nozzle Model |
635 |
460 |
330 |
Pump Model |
JNK-120-11D |
JNK-9516D |
|
Package Size(L*W*H)cm |
145*110*139 |
||
Loading Weight(kg) |
540 |
It can realize high-pressure multi-point and multi-time mist generation and cleaning operations.
1.high precision filter element 7 pcs
1.Garden landscape fog making
2.Plant cooling and kill virus
3.Mine dust removal and cooling
4.Vehicle cleaning
